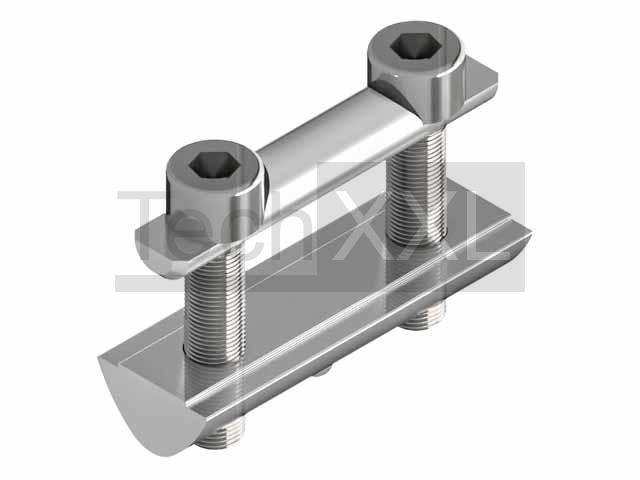

Bolt connector set 60

Technical data
Serie: Groove 12
Typ: I
Material:
Weight: Kg
TIN: 102432
CAD Data
---------------
Delivery time 8 Weeks

Please note

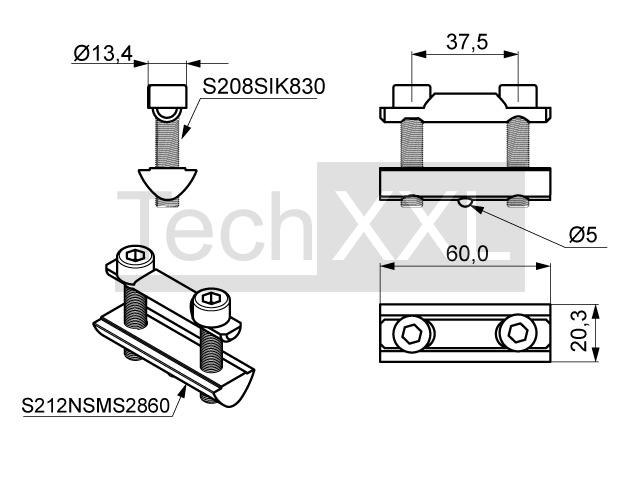

The bolt connector set 60 creates stable right-angled connections of two profiles. In a profile, a 14 mm through hole, 20 mm from the edge must be inserted. Can be built with all profiles of grid 60 of the series 12
