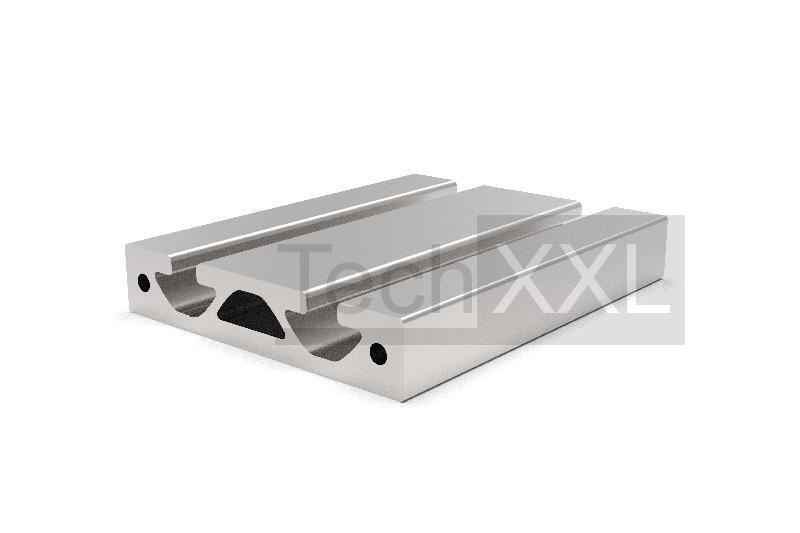

Profile 8 80x16 MW-serie heavy

made in Europe

Technical data
Serie: Groove 8
Typ: I
Dimensions (mm): 6040 x 80 x 16
Material: ALMgSI0,5 F25
Moment of inertia I x: 2,27 cm4
Moment of inertia I y: 51,64 cm4
Elastic modulus W x: 2,63 cm³
Elastic modulus W y: 12,91 cm³
Weight: 2,22 Kg/m
TIN: 101801
CAD Data
---------------
from stock

Please note
Aluminium profile with a smaller radius at the outer edges according to the state of the art in natural anodized application from European production Can be built with all MW-Line and conventional accessories from the series 8 in grid 40 Profile is ideal for thread edits

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 20.24 €/m netto

Please choose / Bitte wählen

Bars Cutting

at bar products request cheap scale price
⮮

for cuts (including saw cut) request cheap unit price
⮮ The cuting is limited between min. 20 mm and max. 6000mm
Shipping with parcel service is possible until 2400mm
