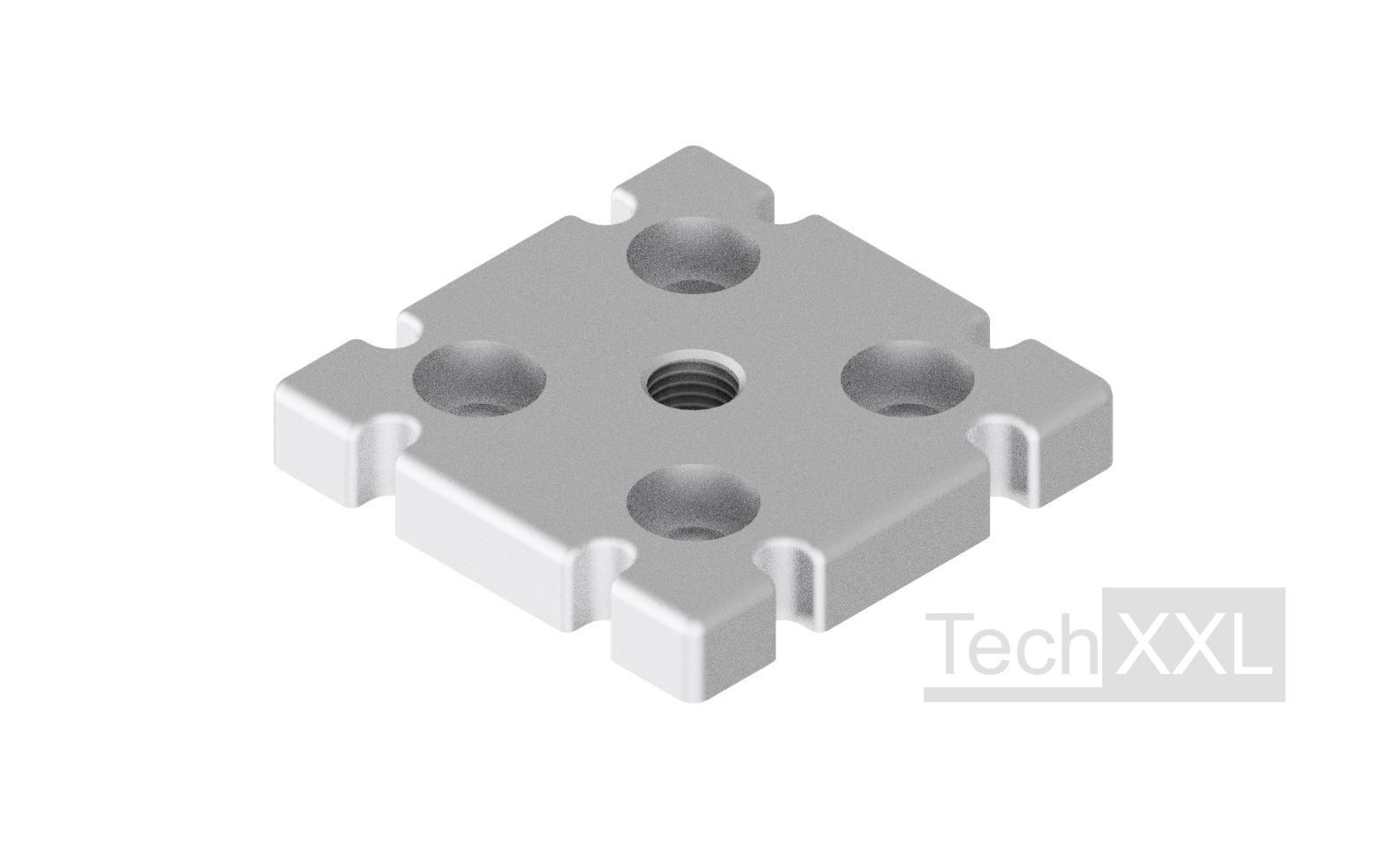

Base plate 10 90x90 M16
Technical data
Serie: Groove 10
Typ: B
Dimensions (mm): 90 x 90 x 20
Material: ALU
Weight: 0,2485 Kg
TIN: 101104
CAD Data
---------------
from stock
Serie: Groove 10
Typ: B
Dimensions (mm): 90 x 90 x 20
Material: ALU
Weight: 0,2485 Kg
TIN: 101104
CAD Data
---------------
from stock
Please note
Stable fastening plate for mounting adjusting plates and rollers. The foot plate can be screwed into the core holes of the profiles on the side of the front side. Four central screws M12x30 are required for fastening. Can only be built with profile 10 90x90 easily
Stable fastening plate for mounting adjusting plates and rollers. The foot plate can be screwed into the core holes of the profiles on the side of the front side. Four central screws M12x30 are required for fastening. Can only be built with profile 10 90x90 easily
Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.
starting from 6.32 €/Piece netto
Please choose (bitte wählen):
Please choose (bitte wählen):
request cheap unit price
⮮
⮮
