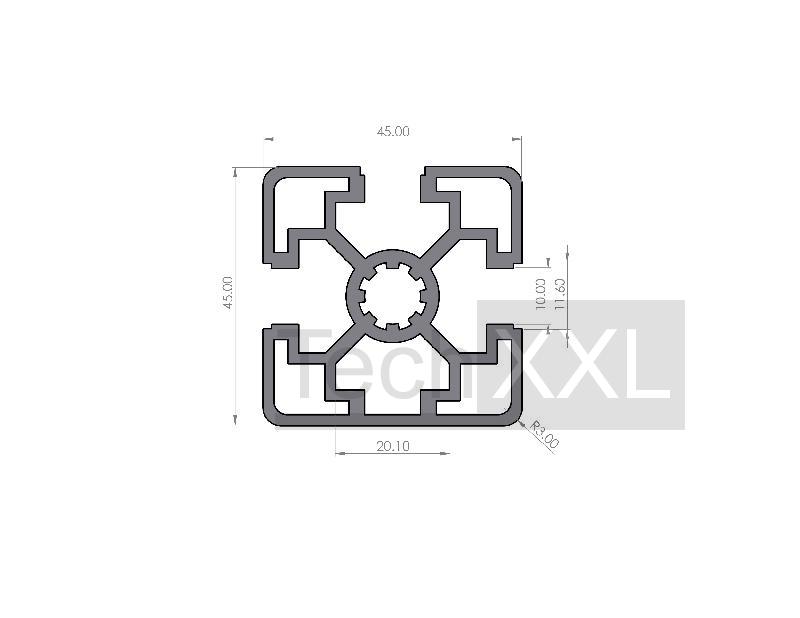

Profile 10 45x45 1N

made in Europe

Technical data
Serie: Groove 10
Typ: B
Dimensions (mm): 6040 x 45 x 45
Material: AlMgSi0,5F25 natur eloxiert
Moment of inertia I x: 10,99 cm4
Moment of inertia I y: 11,78 cm4
Elastic modulus W x: 4,884 cm³
Elastic modulus W y: 5,086 cm³
Weight: 1,586 Kg/m
TIN: 100824
CAD Data
---------------
from stock

Please note
Aluminium profile in natural anodized application from European production Can be built with class 10 accessories Can be combined with all profiles of the 10 series Tolerances for cuts according to DIN ISO 2768 Part 1 m

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 13.14 €/m netto

Please choose / Bitte wählen

Bars Cutting

at bar products request cheap scale price
⮮

for cuts (including saw cut) request cheap unit price
⮮ The cuting is limited between min. 20 mm and max. 6000mm
Shipping with parcel service is possible until 2400mm
