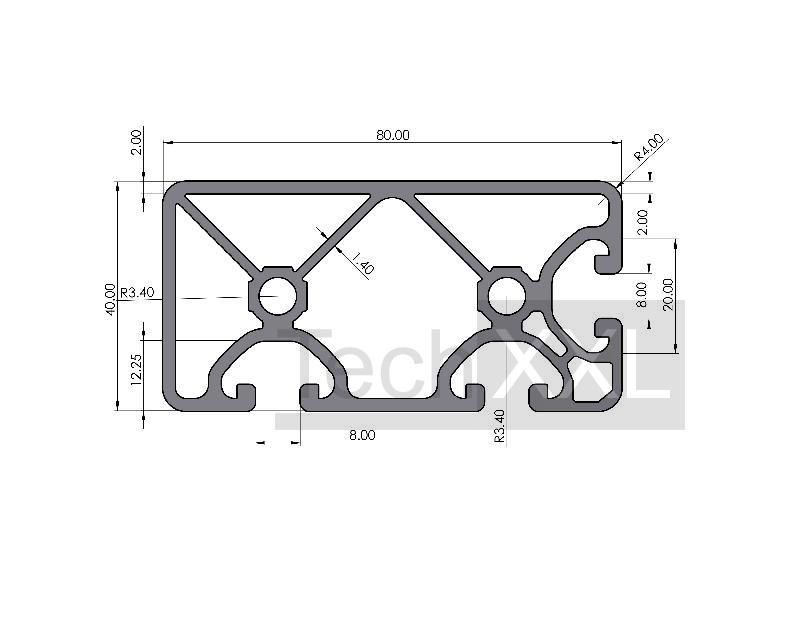

Profile 8 80x40 3N90eco

made in Europe

Technical data
Serie: Groove 8
Typ: I
Dimensions (mm): 6040 x 80 x 40
Material: AlMgSi0,5F25 natur eloxiert
Moment of inertia I x: 15,93 cm4
Moment of inertia I y: 56,29 cm4
Elastic modulus W x: 7,81 cm³
Elastic modulus W y: 13,8 cm³
Weight: 2,146 Kg/m
TIN: 100538
CAD Data
---------------
from stock

Please note
Aluminium profile in natural anodized application from European production Can be built with class 8 accessories in grid 40 Not suitable for threaded shape connectors under high loads Tolerances for cuts according to DIN ISO 2768 Part 1 m

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 19.93 €/m netto

Please choose / Bitte wählen

Bars Cutting

at bar products request cheap scale price
⮮

for cuts (including saw cut) request cheap unit price
⮮ The cuting is limited between min. 20 mm and max. 6000mm
Shipping with parcel service is possible until 2400mm
