Angle hinge bracket 6


Angle hinge bracket 6 wie HS206GW
Angle hinge bracket 6
Angle hinge bracket 6
Technical data
Serie: Groove 6
Typ: I
Dimensions (mm): 23 x 25 x 30
Material: ZN beschichtet
Weight: 0,045 Kg
TIN: 100163
CAD Data
---------------
from stock

Please note

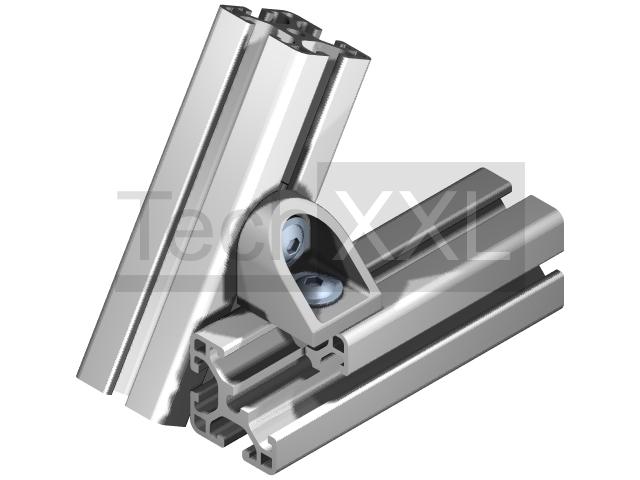

The articulated angle 6 achieves all optical requirements through its silver shining lacquer coating and is used to connect two profiles of the same series, which lie on their side edges and stand at any angle to each other. The joint angle is also available as a set. Can be built with all profiles of the series 6 in grid 30

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 1.91 €/Piece netto


Please choose (bitte wählen):




request cheap unit price
⮮
Stk.
