Τεχνικά δεδομένα
Σειρά: Groove 5
Typ: I

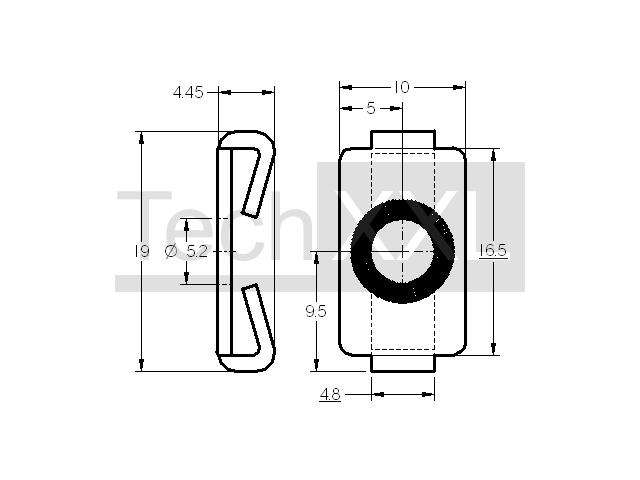

Διαστάσεις (mm): 19 x 10 x 4,5
Υλικό: ST verzinkt
Βάρος: 0,002 Kg
TIN: 100033
CAD Δεδομένων
---------------
από το απόθεμα

Παρακαλώ σημειώστε

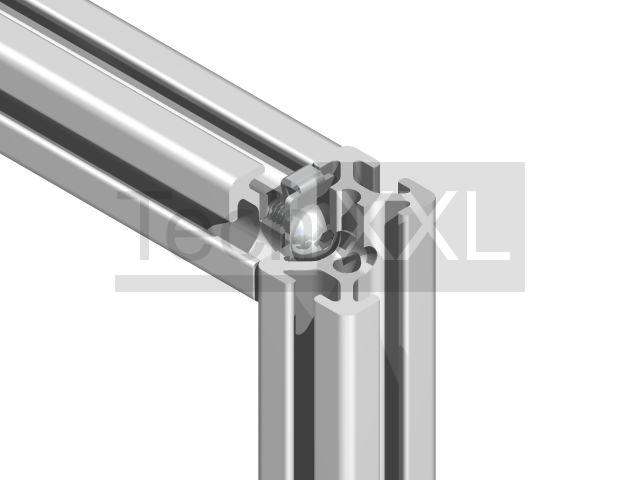

Centering plates are used for a stable 90° connection with low machining effort. A thread M5 must be cut into the core bore of one profile and a hole with a diameter of 4.3 must be drilled in the right angled profile. In other way, centering plates ensure a true fixation of the profiles. The centering plate 5 is also available as a set under S205ZPS. Can be built with all profiles of the series 5 in grid 20

Από 0.17 €/Υπολογιστές. netto
