Technické údaje
Série: Groove 8
Typ: I
Rozměry (mm): 80 x 40 x 40
Materiál: ZN beschichtet
Hmotnost: 0,2915 Kg
TIN: 100723
CAD Dat
---------------
ze skladu

Upozorňujeme

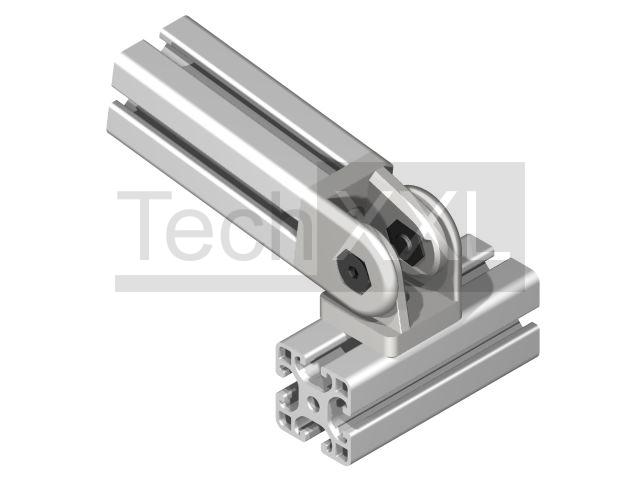

Joints can be used for rigid or movable profile connections at any angle. The maximum swivel range is 180°. When used on the front side, an M 8 thread must be cut in the core hole of the profile. End-side connection: semi-circular screw ISO 7380,M8x25 Connection in the profile groove: semi-circular screw ISO 7380 M8x16 and Nutenstein 8 without bridge M8. Can be used with all profiles of the series 8 of the grid 40.

Vypnuto 7.68 €/Počítačů. netto
